50mm Poly Pipe Compression Equal Tee Metric Blue Line Irrigation 50x50x50
50mm Poly Pipe Compression Equal Tee Metric Blue Line Irrigation 50x50x50
Couldn't load pickup availability

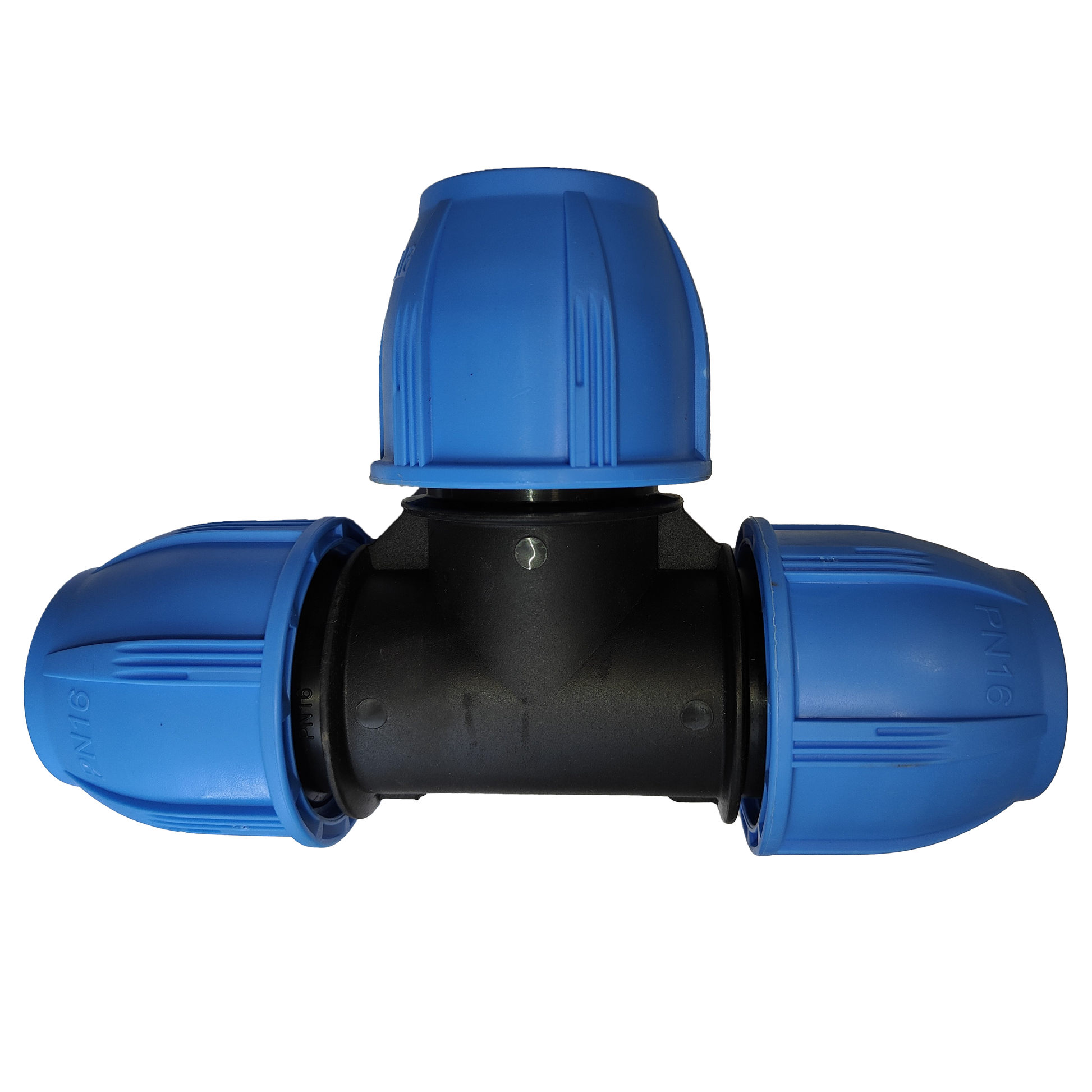

50mm Equal Tee Compression Fitting for Metric Poly Pipe
50mm polypropylene equal tee. Takes a branch off a run of 50mm metric poly pipe — all three ends the same size. No glue, no solvent, no special tools, and it comes apart again if you need to move the line.

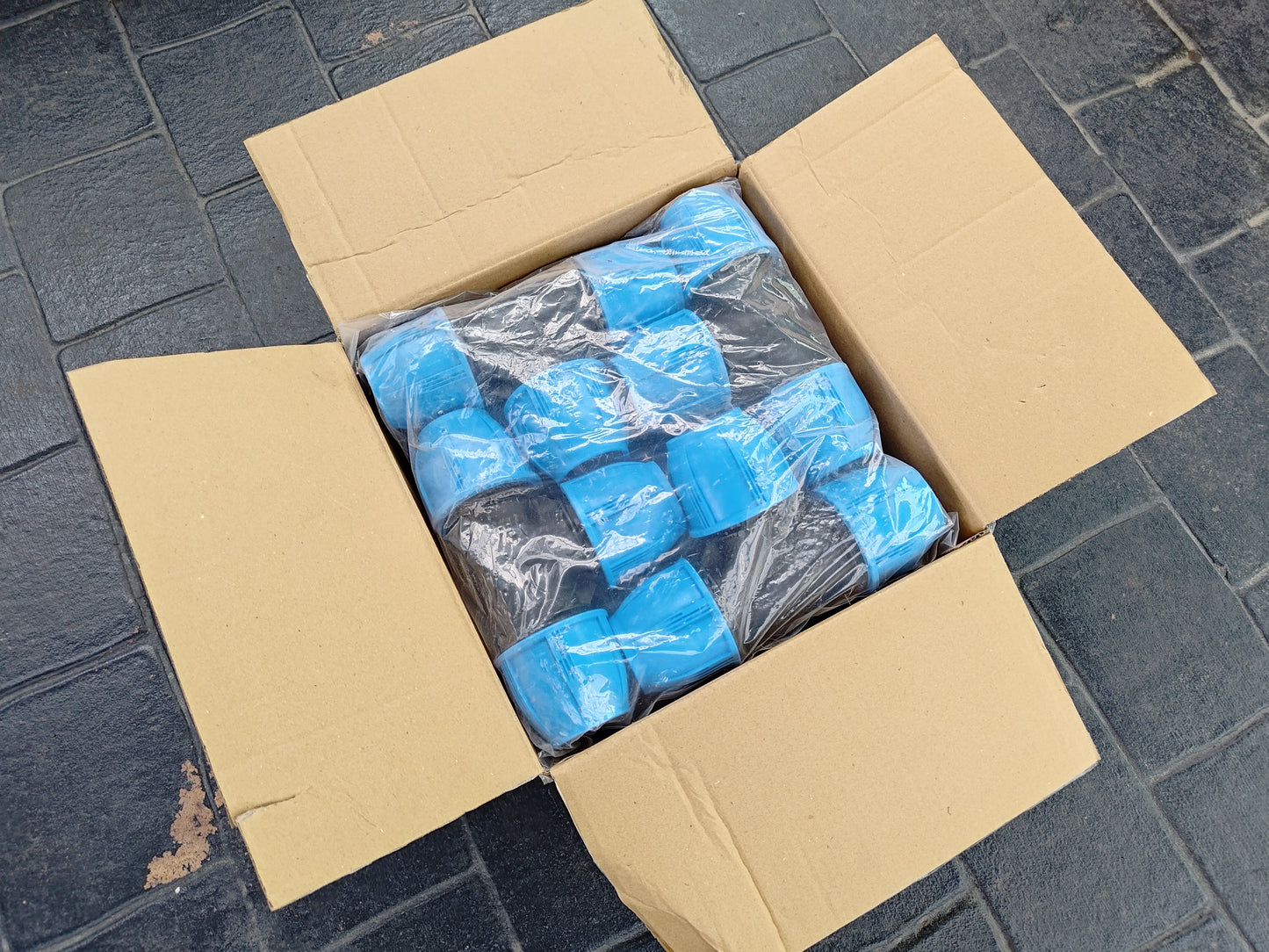

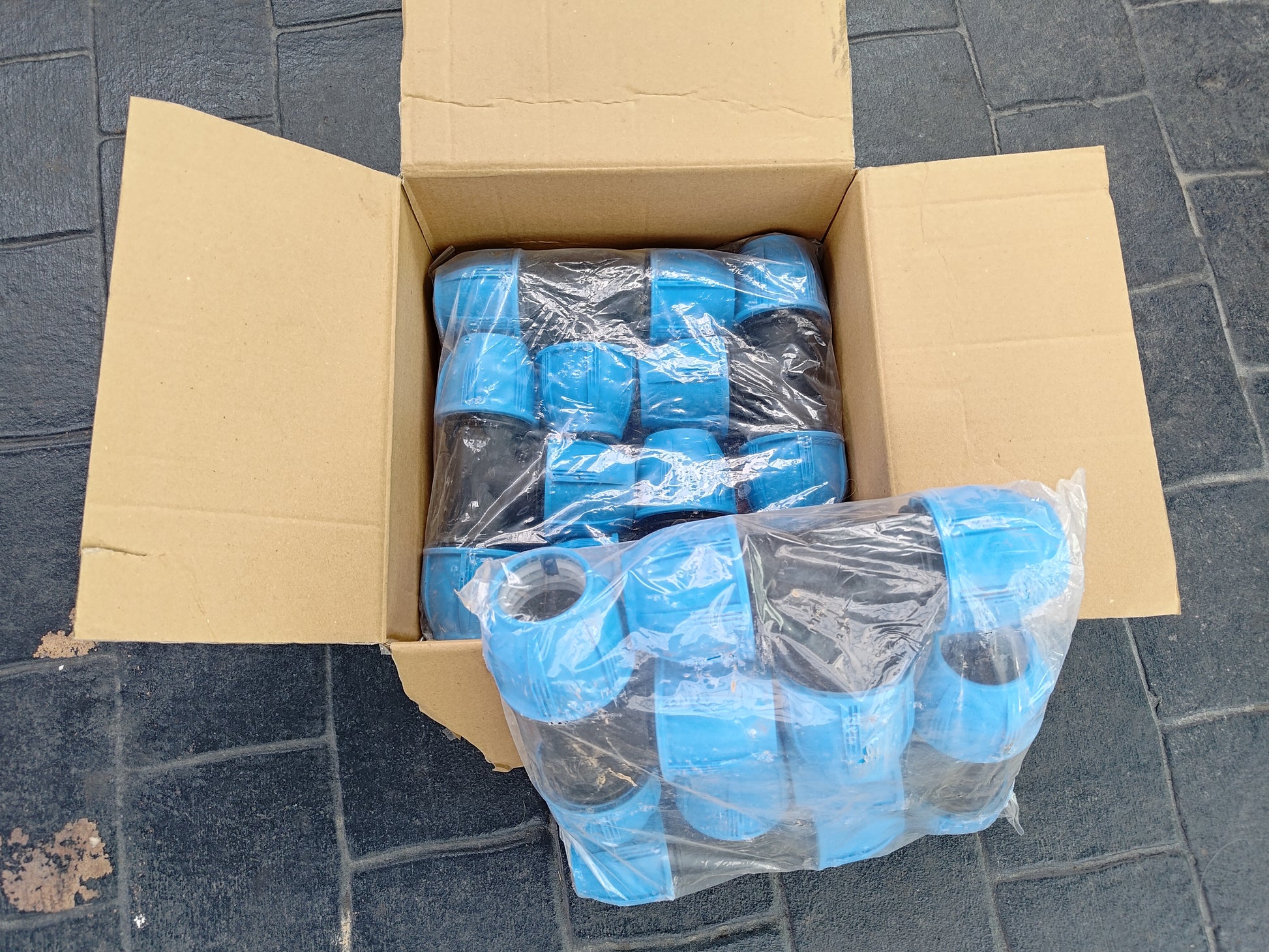

Buying the 8-pack saves you $63 and ships free.
It goes as one parcel.
What it fits — and what it doesn't
- Fits 50mm metric poly pipe — 50.0mm outside diameter. This is blue line pipe to AS/NZS 4130, and the same 50mm size in HDPE, MDPE and LDPE.
- Does not fit rural poly. Australian 2" rural pipe is about 57mm outside diameter and needs rural fittings. The nut opening on this tee is 53mm, so 2" rural pipe will not pass through it.
- Does not fit PVC pressure pipe. Australian DN50 PVC is 60.3mm outside diameter.
- Not sure which you have? Measure the outside of your pipe with a tape. It needs to be 50mm.
Not WaterMark certified. Not for use in regulated plumbing or drinking-water supply. Intended for irrigation, stock water, ponds and other non-potable outdoor use.
Typical jobs

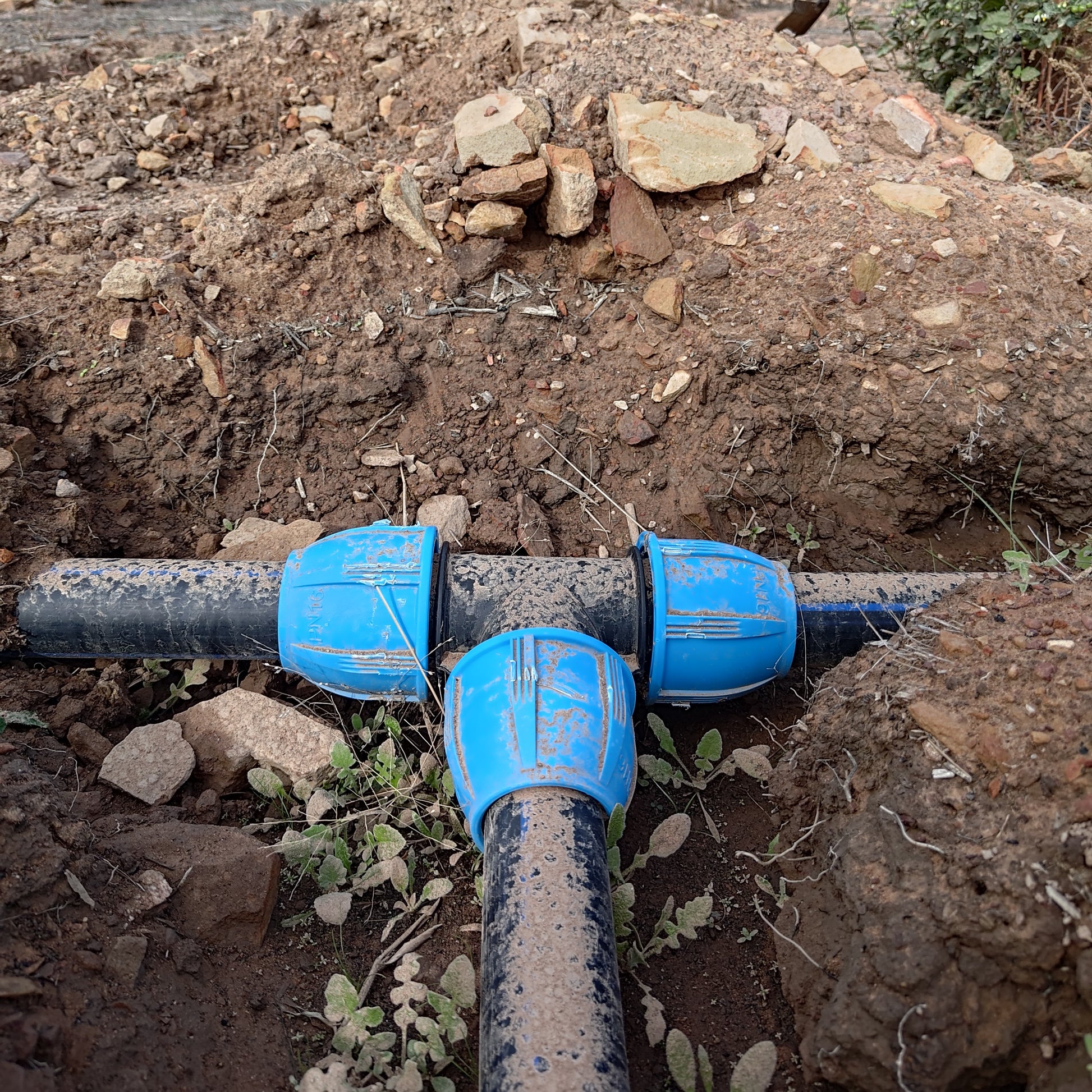

Splitting a mainline to two paddocks or two tank outlets, branching a pump delivery line, and row take-offs on an orchard mainline. Reduce down after the tee with a 50mm-to-smaller compression reducer from your irrigation store.
Specifications
| Size | 50mm x 50mm x 50mm metric — fits 50.0mm OD pipe |
| Pressure rating | PN16 — manufacturer's published figure |
| Body material | Polypropylene copolymer |
| Seal | D-ring with grip ring and compression nut, all three ends |
| Length | 275mm across the run |
| Height | 180mm to the branch |
| Nut outside diameter | 71mm |
| Nut opening | 53mm |
| Weight | 655g each |
| Colour | Blue nuts, black body |
| Nut branding | Compression nuts moulded "Bentlay's 50mm" |
Fitting it

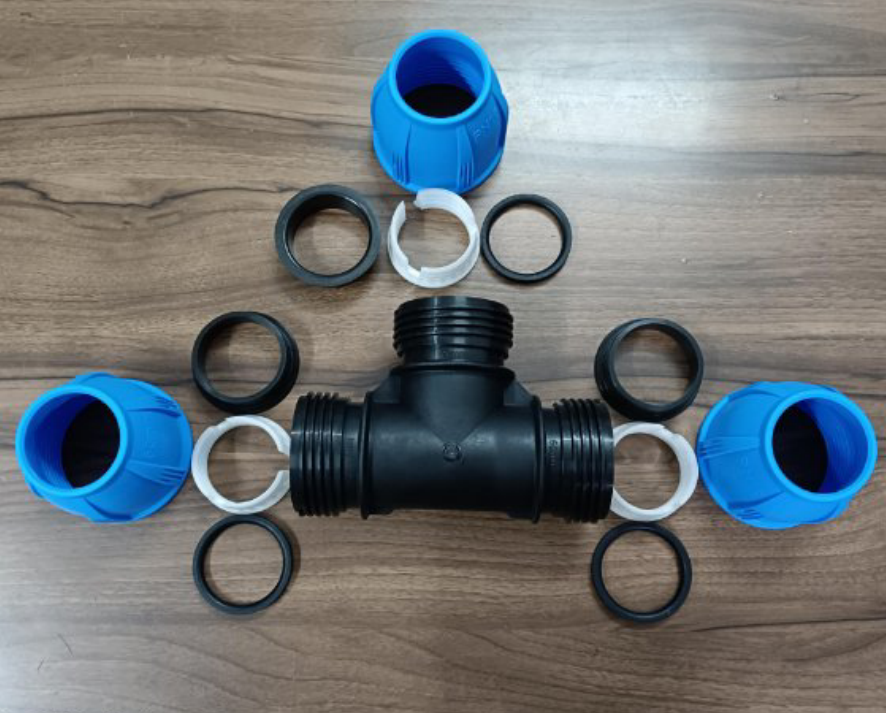

Cut the pipe square. Loosen the nut, push the pipe in until it seats past the D-ring, then hand-tighten the nut. The grip ring closes onto the pipe as the nut goes on. To take it apart, back the nut off — the grip ring comes free on the pipe and the D-ring lifts out for cleaning. Works on wet pipe and in the trench.
Also in the range
50mm coupler, 90° elbow and end cap in the same metric size, and a repair kit with two couplers and a length of pipe. Search the shop for "50mm metric".
Where these came from
Excess stock from our own farm irrigation project near Bendigo in central Victoria. We bought pipe and fittings in bulk for the orchard and over-ordered on the fittings. Ships from Bendigo.
