The Native Farm

50mm Poly Pipe Compression End Cap Stop End Metric Blue Line Irrigation Fitting

50mm Poly Pipe Compression End Cap Stop End Metric Blue Line Irrigation Fitting

Regular price $9.00 AUD
Regular price Sale price $9.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Pack

50mm Compression End Cap for Metric Poly Pipe

50mm polypropylene end cap. Seals off the end of a run of 50mm metric poly pipe. No glue, no solvent, no special tools — and it comes off again when you want to extend the line or flush it out.

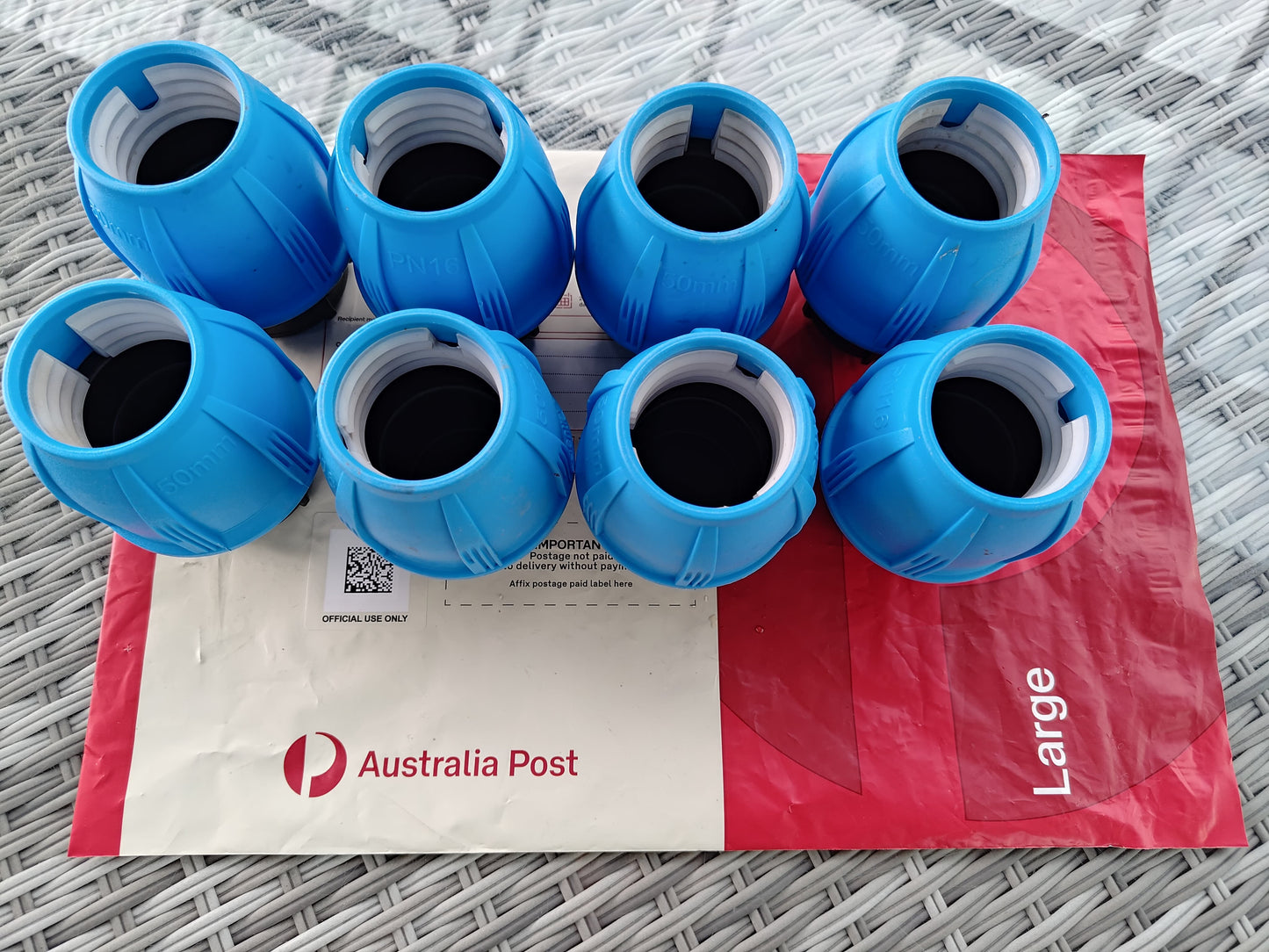

Buying the 8-pack saves you $63.
The pack ships as one parcel, so you only pay postage once.

What it fits — and what it doesn't

  • Fits 50mm metric poly pipe — 50.0mm outside diameter. This is blue line pipe to AS/NZS 4130, and the same 50mm size in HDPE, MDPE and LDPE.
  • Does not fit rural poly. Australian 2" rural pipe is about 57mm outside diameter and needs rural fittings. The nut opening on this cap is 53mm, so 2" rural pipe will not pass through it.
  • Does not fit PVC pressure pipe. Australian DN50 PVC is 60.3mm outside diameter.
  • Not sure which you have? Measure the outside of your pipe with a tape. It needs to be 50mm.

Not WaterMark certified. Not for use in regulated plumbing or drinking-water supply. Intended for irrigation, stock water, ponds and other non-potable outdoor use.

Typical jobs

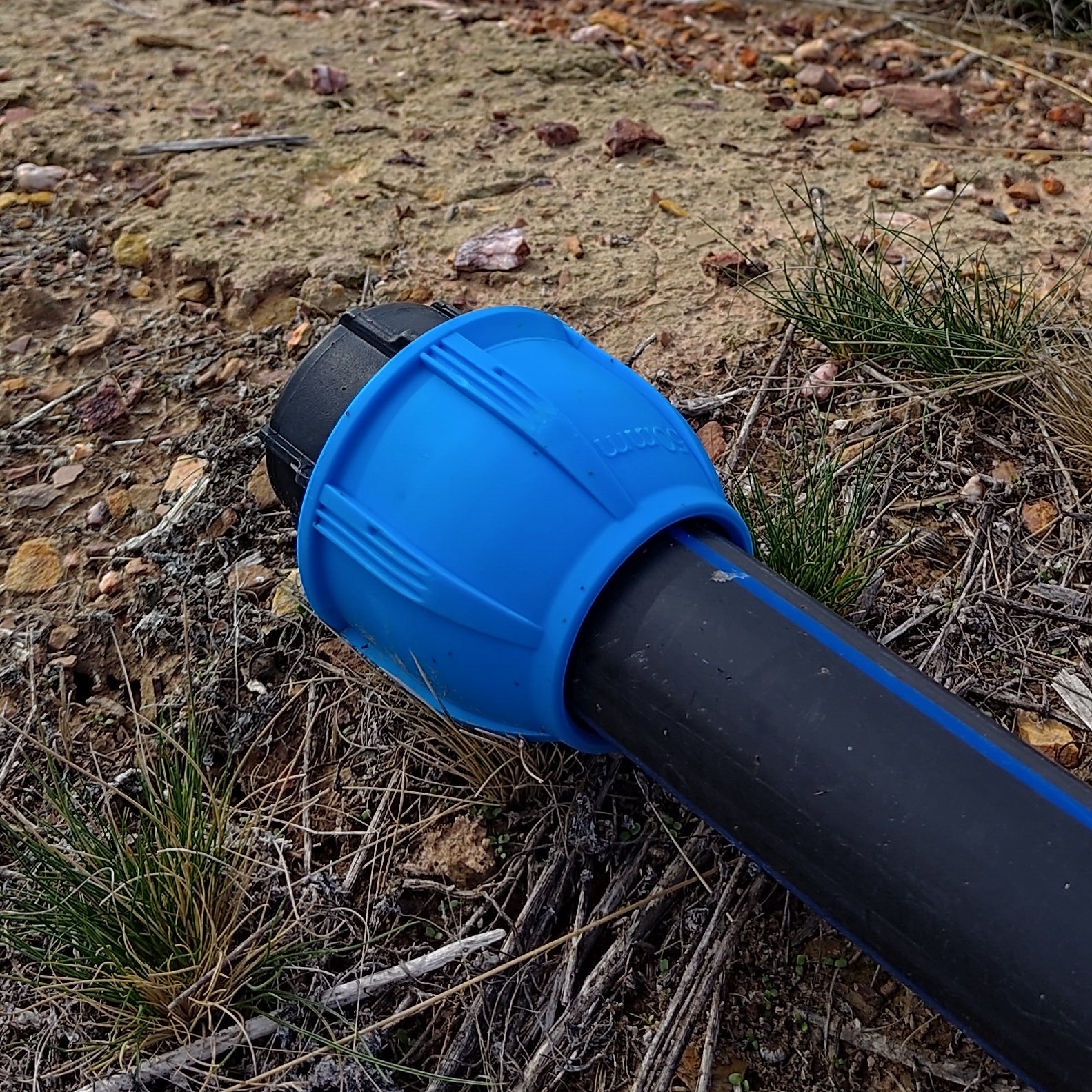

Blanking the end of a mainline you plan to extend later, capping an unused branch on a tee, and a flushing point at the low end of a run.

Specifications

Size 50mm metric — fits 50.0mm OD pipe

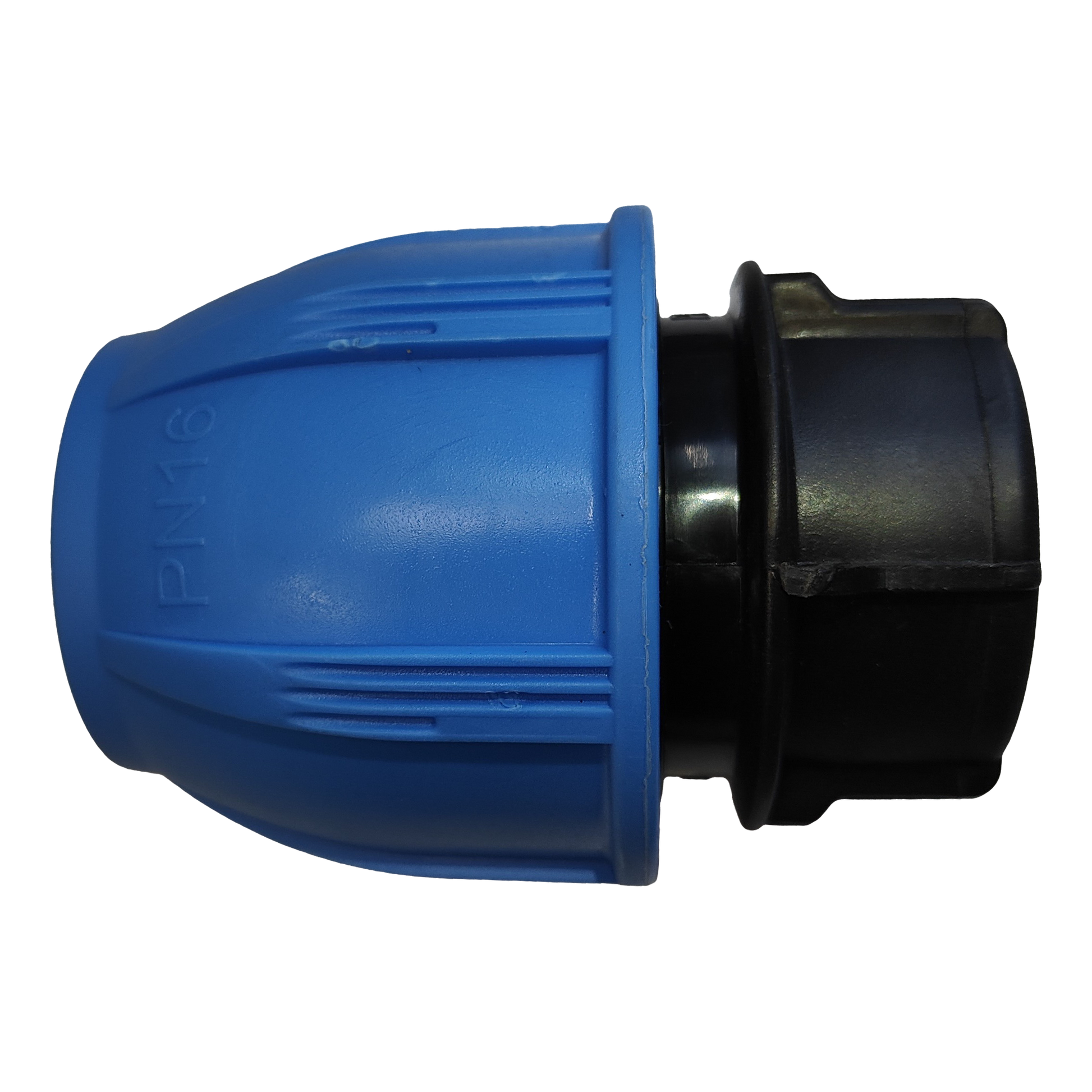

Pressure rating PN16 — manufacturer's published figure
Body material Polypropylene copolymer

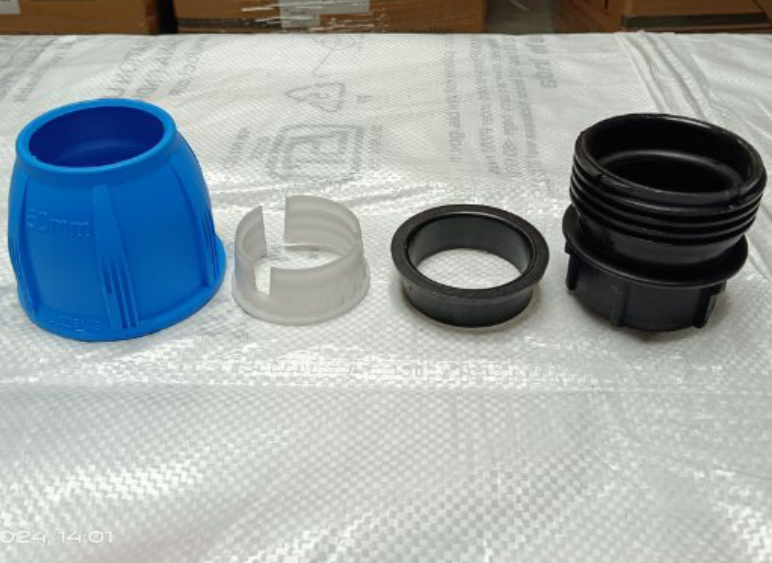

Seal D-ring with grip ring and compression nut
Length 110mm
Nut outside diameter 71mm
Nut opening 53mm
Weight 224g each
Colour Blue nut, black body
Nut branding Compression nut moulded "Bentlay's 50mm"

Fitting it

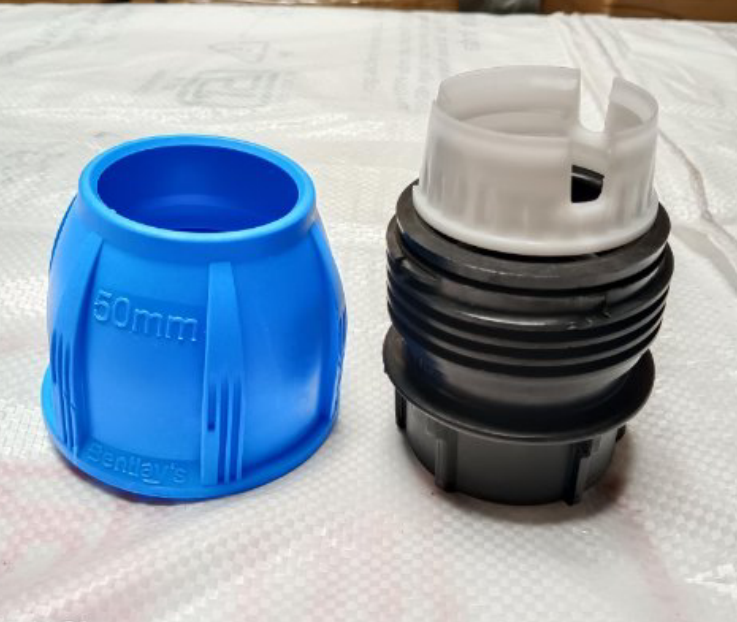

Cut the pipe square. Loosen the nut, push the pipe in until it seats past the D-ring, then hand-tighten the nut. The grip ring closes onto the pipe as the nut goes on. To take it off, back the nut off — the grip ring comes free on the pipe and the D-ring lifts out for cleaning. Handy on a line you expect to extend later, since nothing is cut or glued.

Also in the range

50mm coupler, equal tee and 90° elbow in the same metric size, and a repair kit with two couplers and a length of pipe. Search the shop for "50mm metric".

Where these came from

Excess stock from our own farm irrigation project near Bendigo in central Victoria. We bought pipe and fittings in bulk for the orchard and over-ordered on the fittings. Ships from Bendigo.
